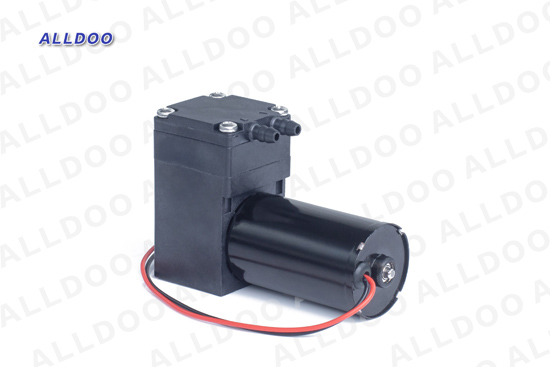

CMP30LW,mini Liquid pumps,water micro pumps are well suited for transferring and evacuating neutral or corrosive liquid as well as water with low flow and low pressure.
Technical Features:
1.Long lifetime with a brushless motor.
2.Uncontaminated flow.
3.Non-metallic construction.
4.Compact size.
5.Maintaince free.
6.High level of water tightness thanks to the closed diaphragm surface and special sealing system.
7.Can operate in any installed position.
Various models
Type | Voltage | Free flow | Max vacuum | Max pressure | Current | Size |
---|---|---|---|---|---|---|
CMP30LW | 12VDC | 300 mL/min | -0.4 bar | 4 bar | 0.4 A | 30*53*75mm (Brushless motor) |
CMP30LW | 24VDC | 300 mL/min | -0.4 bar | 4 bar | 0.3 A | 30*53*75mm (Brushless motor) |
