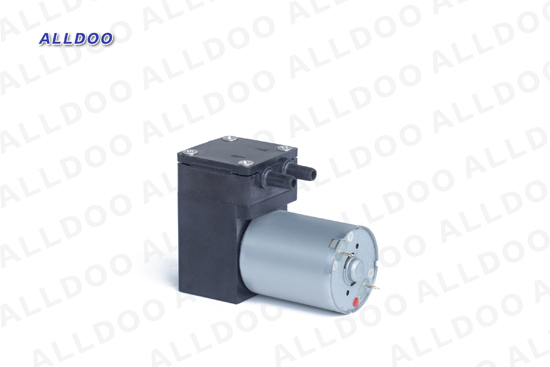

CMP-25 vacuum(air,gas) micro pump are well suited for transferring,evacuating and compressing air and neutral or corrosive gases as well as vapors.

Technical Features:
1.Uncontaminated flow.
2.Non-metallic construction.
3.Compact size.
4.Maintaince free.
5.High level of gas tightness thanks to the closed diaphragm surface and special sealing system.
6.Can operate in any installed position.

Various models



Typer



Voltage Free flow Max vacuum Max pressure Current Size
CMP25A 12 VDC 3 L/min -550mbar 1 bar 0.15A 25*40*55mm
CMP25B 12 VDC 2.5 L/min -400mbar 0.7 bar 0.15A 25*40*55mm
CMP25CG  6 VDC 1 L/min -400mbar 0.4 bar 0.15A 25*40*55mm
CMP25BW 12 VDC 2.5 L/min -400mbar 0.7 bar 0.15A

25*40*55mm

(Brushless Motor)

CMP25CW  6 VDC  1 L/min  -400mbar  400 mbar  0.1 A

25*40*55mm

(Brushless Motor)
