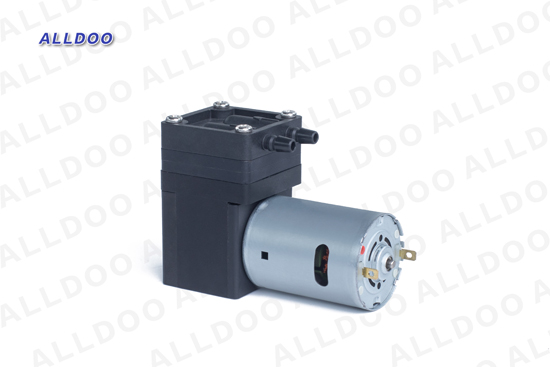

CMP40,miniature air compressors,micro pump are well suited for transferring,evacuating and compressing air and neutral or corrosive gases as well as vapors.

Technical Features:
1.Uncontaminated flow.
2.Non-metallic construction.
3.Compact size.
4.Maintaince free.
5.High level of gas tightness thanks to the closed diaphragm surface and special sealing system.
6.Can operate in any installed position

Various models

Type

Voltage Free flow Max vacuum Max pressure Current Size
CMP40-2V 12 VDC 10 L/min -700mbar 1.2 bar 1 A 40*60*95mm
CMP40-2V 24 VDC 10 L/min -700mbar 1.2 bar 0.5A 40*60*95mm
CMP40-1P 12 VDC 6 L/min -550mbar 1.5 bar 0.8A 40*60*95mm
CMP40-1P 24 VDC 6 L/min -550mbar 1.5 bar 0.4A 40*60*95mm
CMP40-2P 12 VDC 6 L/min -700mbar 2 bar 0.9A 40*60*95mm
CMP40-2P 24 VDC 6 L/min -700mbar 2 bar 0.4A 40*60*95mm
CMP40-6A 12 VDC 7 L/min -400mbar 0.8 bar 0.5A 40*60*95mm
CMP40-6A 24 VDC 7 L/min -400mbar 0.8 bar 0.35A 40*60*95mm
CMP40-6R 12 VDC 6 L/min -500mbar 0.8 bar 0.5A 40*60*95mm
CMP40-6R 24 VDC 6 L/min -500mbar 0.8 bar 0.3A 40*60*95mm
CMP40-8R 12 VDC 8 L/min -600mbar 1 bar 0.7A 40*60*95mm
CMP40-8R 24 VDC 8 L/min -600mbar 1 bar 0.4A 40*60*95mm
CMP40-10R 12 VDC 10 L/min -700mbar 1.2 bar 0.9A 40*60*95mm
CMP40-10R 24 VDC 10 L/min -700mbar 1.2 bar 0.5A 40*60*95mm
CMP40-4W 12 VDC 6 L/min -700mbar 1.2 bar 0.6A

40*66*95mm

(Brushless Motor)

CMP40-4W 24 VDC 5 L/min -700mbar 1.2 bar 0.35A

40*66*95mm

(Brushless Motor)
