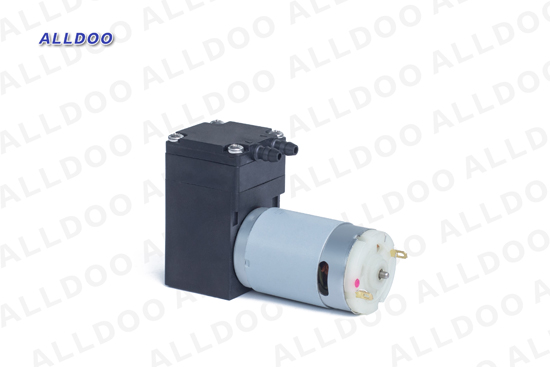

CMP30 vacuum(air,gas) micro pump are well suited for transferring,evacuating and compressing air and neutral or corrosive gases as well as vapors.
Technical Features:
1.Uncontaminated flow.
2.Non-metallic construction.
3.Compact size.
4.Maintaince free.
5.High level of gas tightness thanks to the closed diaphragm surface and special sealing system.
6.Can operate in any installed position.
Various models
| Type | Voltage | Free flow | Max vacuum | Max pressure | Current | Size |
|---|---|---|---|---|---|---|
| CMP30-3P | 12 VDC | 3 L/min | -800mbar | 2.5 bar | 0.5A | 30*53*75mm |
| CMP30-3P | 24 VDC | 3 L/min | -800mbar | 2.5 bar | 0.3A | 30*53*75mm |
| CMP30-2V | 12 VDC | 3 L/min | -700mbar | 2 bar | 0.4A | 30*53*75mm |
| CMP30-2V | 24 VDC | 6 L/min | -700mbar | 2 bar | 0.3A | 30*53*75mm |
| CMP30-4A | 12 VDC | 6 L/min | -600mbar | 1.5 bar | 0.4A | 30*53*75mm |
| CMP30-4A | 24 VDC | 5 L/min | -600mbar | 1.5 bar | 0.25A | 30*53*75mm |
| CMP30-3PW | 12 VDC | 3 L/min | -800mbar | 2.5 bar | 0.4A | 30*53*77mm (Brushless Motor) |
| CMP30-3PW | 24 VDC | 3 L/min | -800mbar | 2.5 bar | 0.3A | 30*53*77mm (Brushless Motor) |
| CMP30-4AW | 12 VDC | 5 L/min | -550mbar | 1.5 bar | 0.4A | 30*53*77mm (Brushless Motor) |
| CMP30-4AW | 24 VDC | 5 L/min | -550mbar | 1.5 bar | 0.3A | 30*53*77mm (Brushless Motor |
| CMP30-2VW | 12 VDC | 5 L/min | -700mbar | 2 bar | 0.4A | 30*53*77mm (Brushless Motor |
| CMP30-2VW | 24 VDC | 5 L/min | -700mbar | 2 bar | 0.3A | 30*53*77mm (Brushless Motor |
