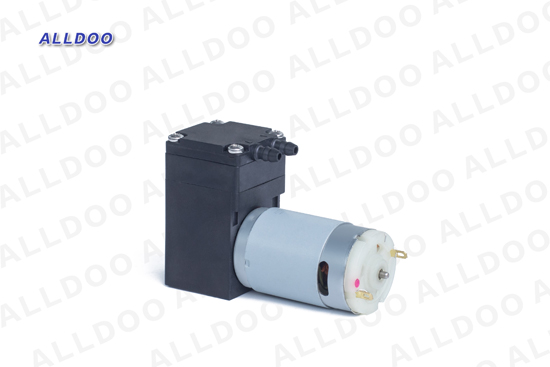

CMP30L,micro water pump,mini membrane pump,liquid micro pumps are well suited for transferring and evacuating neutral or corrosive liquid as well as water with low flow and low pressure.

Technical Features
1.Uncontaminated flow.
2.Non-metallic construction.
3.Compact size.
4.Maintaince free.
5.High level of water tightness thanks to the closed diaphragm surface and special sealing system.
6.Can operate in any installed position.

Various models

Type Voltage Free flow Max vacuum Max pressure Current Size
CMP30L 12V DC 300ML/min -400mbar 3 bar 0.5A 30*53*75mm
CMP30L 24V DC 300ML/min -400mbar 3 bar 0.3A 30*53*75mm
CMP30LW 12V DC 300ML/min -400mbar 4 bar 0.4A (Brushless motor)
CMP30LW 24V DC 300ML/min -400mbar 4 bar 0.3A (Brushless motor)
