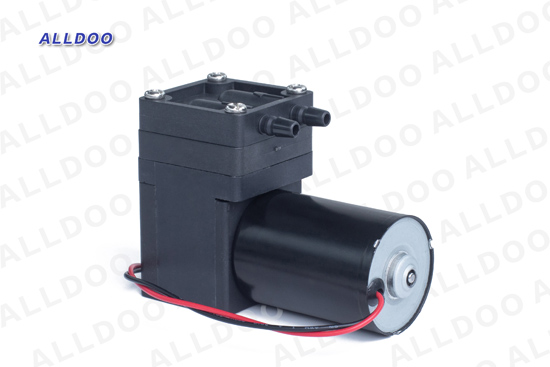

CMP40W,miniature diaphragm pump,vacuum micro pump are well suited for transferring,evacuating and compressing air and neutral or corrosive gases as well as vapors.

Technical Features:
1.Long lifetime with a brushless motor.
2. Uncontaminated flow.
3.Non-metallic construction.
4.Compact size.
5.Maintaince free.
6.High level of gas tightness thanks to the closed diaphragm surface and special sealing system.
7.Can operate in any installed position

Various models



Type



Voltage Free flow Max vacuum Max pressure Current Size
CMP40-4W 12V DC 6 L/min -700mbar 1.2 bar 0.6A

40*66*95mm

(Brushless Motor)

CMP40-4W 24V DC 5 L/min -700mbar 1.2 bar 0.35A

40*66*95mm

(Brushless Motor)
