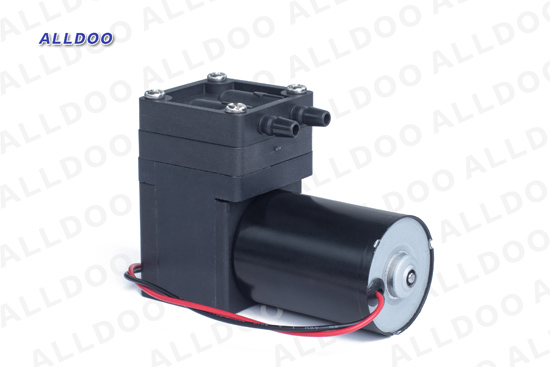

CMP40LW Liquid(water) micro pumps are well suited for transferring and evacuating neutral or corrosive liquid as well as water with low flow and low pressure.

Technical Features:
1.Long lifetime with a brushless motor.
2.Uncontaminated flow.
3.Non-metallic construction.
4.Compact size.
5.Maintaince free.
6.High level of water tightness thanks to the closed diaphragm surface and special sealing system.
7.Can operate in any installed position.

Various models

Type Voltage

Free flow

Max vacuum Max pressure Current Size
CMP40LW 12V DC 0.6 L/min -300m bar 4 bar 0.8A

40*66*95mm

(Brushless motor)

CMP40LW 24V DC 0.6 L/min -300m bar 4 bar 0.5A

40*66*95mm

(Brushless motor)
