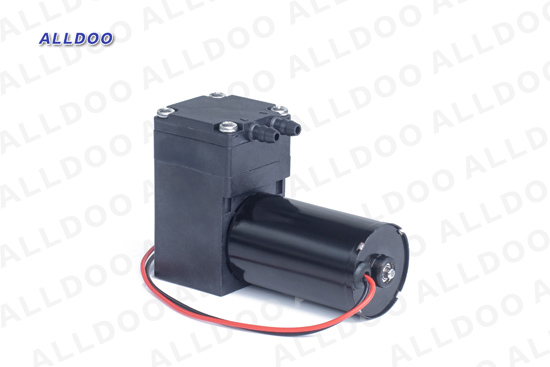

CMP30W,micro air pumps,vacuum micro pump are well suited for transferring,evacuating and compressing air and neutral or corrosive gases as well as vapors.

Technical Features:
1.Long lifetime with a brushless motor.
2. Uncontaminated flow.
3.Non-metallic construction.
4.Compact size.
5.Maintaince free.
6.High level of gas tightness thanks to the closed diaphragm surface and special sealing system.
7.Can operate in any installed position

Various models



Type



Voltage Free flow Max vacuum Max pressure Current Size
CMP30-3PW 12 VDC 3 L/min -800mbar 2.5 bar 0.4A

30*53*77mm

(Brushless Motor)

CMP30-3PW 24 VDC 3 L/min -400mbar 2.5 bar 0.3A

30*53*77mm

(Brushless Motor)

CMP30-4AW 12 VDC 5 L/min -550mbar 1.5 bar 0.4A

30*53*77mm

(Brushless Motor)

CMP30-4AW 24 VDC 5 L/min -550mbar 1.5 bar 0.3A

30*53*77mm

(Brushless Motor)

CMP30-2VW 12 VDC 5 L/min -700mbar 2 bar 0.4A

30*53*77mm

(Brushless Motor)

CMP30-2VW 24 VDC 5 L/min -700mbar 2 bar 0.3A

30*53*77mm

(Brushless Motor)
