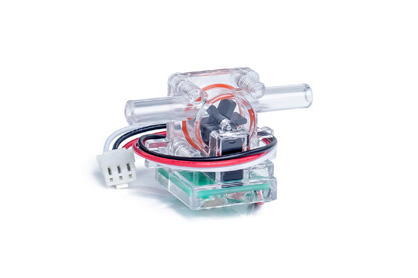

AFM-3 Flow Meter Specifications
Usage:For testing liquid flow rate, Commonly used in smart toilets, drinkingfountains, etc.
Various models
Parameters | AFM-3 |
Rated voltage | 5 VDC |
Rated flow | 300cc~2000cc/Min |
Max Flow Rate | 3500cc/Min |
StorageTemperature | -20℃~85℃ |
OperatingLiquid temperature | 0℃~80℃（ Except whenfrozen） |
Operatingtemperature range | -20℃~80℃ |
Operatinghumidity range | 45%~95%RH |
Weight | 20g |
Feature
By the liquid rate and frequency characteristics (tolerance ± 8%)
cc/Min | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 |
Hz/sec | 64 | 130 | 198 | 265 | 333 | 400 | 467 |
Parameters | Content |
Life Test | After 1000hours at loading pressure of 1.0 kgf.cm², 3% or less of the initial frequencyvalue. |
Pressure test | Withoutleakage within 5 minutes under pressure of 3.0kgf.cm ² size |
